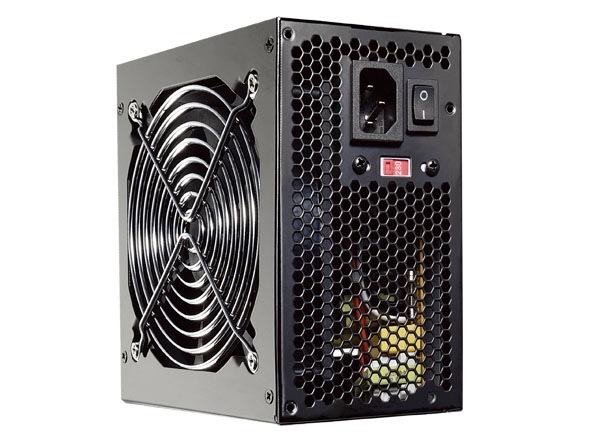

Extreme series packs a powerful punch by delivering stable streams of power through dual +12v outputs. Our Extreme power supplies provides over 70% efficiency at typical loading and meet Energy Star and Blue Angel requirements. With a life-time of 100,000 hours and protection for OVP/OCP/OPP/SCP, these power units are made to last.
Features
1. Compliance with the newest Intel standard ATX 12V V2.3
2. More than 70% efficiency at typical load operation
3. High reliability (MTBF > 100,000 hrs)
4. Green design to meet Energy Star and Blue Angel requirements
5. Silent operation with intelligent fan speed control
6. Multiple protection design(OVP/ UVP /OPP/SCP / OLP)
7. Support dual +12V1 and +12V2 outputs for higher power usage
8. One 8 pin +12V CPU connector for high-end CPU
9. Two-year warranty
Specifications
Model
RS-350-PCAR-I3
Type
Intel Form Factor ATX 12V V2.3
Dimension (W / H / D)
150 x 86 x 140 mm
Input Voltage
90 ~132V/180~264V (Selectable)
Input Current
8A @ 115Vac / 4A @ 230Vac
Input Frequency Range
47 ~ 63 Hz
PFC
None PFC
Power Good Signal
100 ~ 500 ms
Hold Up Time
> 17 ms
Efficiency
70% Typically
MTBF
>100,000 hrs
Protection
OVP / OUP / SCP / OPP / SCP / OLP
Output Capacity
350 Watts
Operation Temperature
0~40°C Nominal Input Voltage?
Safety
CE / BSMI / FCC / C-tick / GOST
Fan
120mm silent fan
Connector
24pin Motherboad X 1
4 Pin+12V CPU X 1
8 Pin+12V CPU X 1
S-ATA X 2
4 pin Peripheral X 5
4 pin Floppy X 1

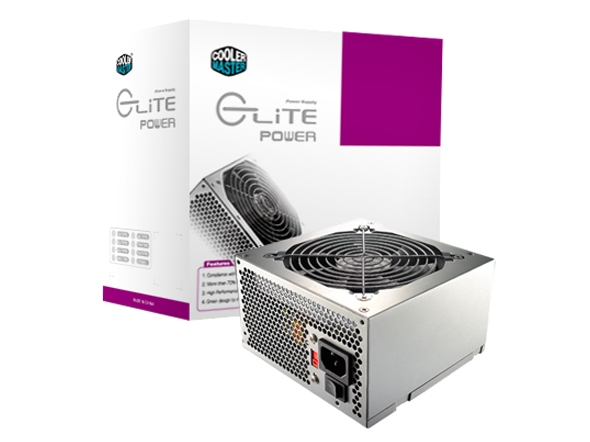

The reliable, efficient and affordable line of Elite power supplies is ideal for mainstream and basic computing systems. Built with quality components and dual +12V outputs, the Elite series is fit to handle demands of high power requirements. The eco-friendly design allows the Elite series to reach more than 70% efficiency at typical loading and meet Energy Star and Blue Angel requirements.
Features
High performance components for improved reliability
Eco-friendly design to meet Energy Star and Blue Angel requirements
Multi-protection design (OVP/OCP/OPP/SCP)
Supports dual +12V1 and +12V2 outputs for high power usage
One 4+4 pin +12V CPU connector for high-end CPU
EMI Noise filter built-in design
Over 70% efficiency at typical loading
Compliance with the latest Intel standard ATX 12V V2.3

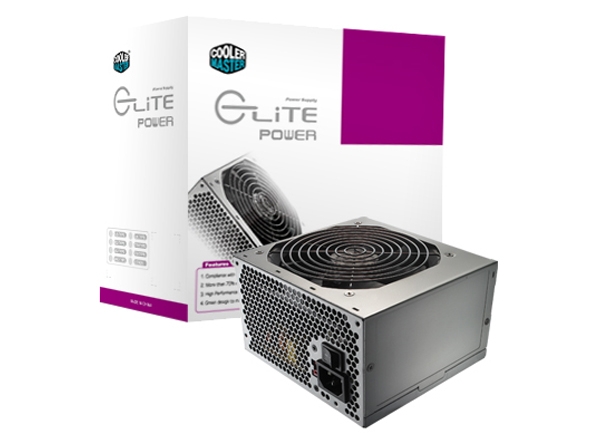

The reliable, efficient and affordable line of Elite power supplies is ideal for mainstream and basic computing systems. Built with quality components and dual +12V outputs, the Elite series is fit to handle demands of high power requirements. The eco-friendly design allows the Elite series to reach more than 70% efficiency at typical loading and meet Energy Star and Blue Angel requirements.
Features
Compliance with the newest Intel standard ATX 12V V2.3
More than 70% efficiency at typical load operation
High performance components design for better reliability
Green power design to meet Energy Star and Blue Angel requirements
Multiple protection design(OVP/OCP/OPP/SCP)
Support dual +12V1 and +12V2 outputs for higher power usage

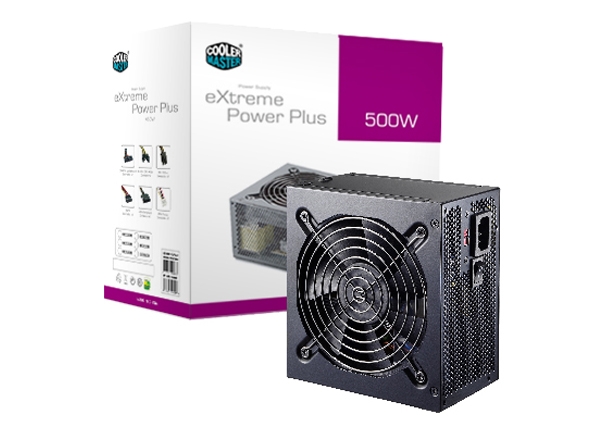

Extreme series packs a powerful punch by delivering stable streams of power through dual +12v outputs. Our Extreme power supplies provides over 70% efficiency at typical loading and meet Energy Star and Blue Angel requirements. With a life-time of 100,000 hours and protection for OVP/OCP/OPP/SCP, these power units are made to last.
Features
1. Compliance with the newest Intel standard ATX 12V V2.3
2. More than 70% better efficiency at typical load operation
3. High reliability (MTBF > 100,000 hrs)
4. Green power design to meet Energy Star and Blue Angel requirements
5.?Multiple protection design(OVP/OCP/OPP/SCP)
6. Support dual +12V1 and +12V2 outputs for higher power usage
7-Two-year warranty
Specifications
Model
RS-500-PCAR-A3 / RS-500-PCAP-A3
Type
Intel Form Factor ATX 12V V2.3
Dimension (W / H / D)
150 x 86 x 140 mm
Input Voltage
RS-500-PCAR-A3 / 90 ~132V/180~264V (Selectable)
RS-500-PCAP-A3 / 180~264 V

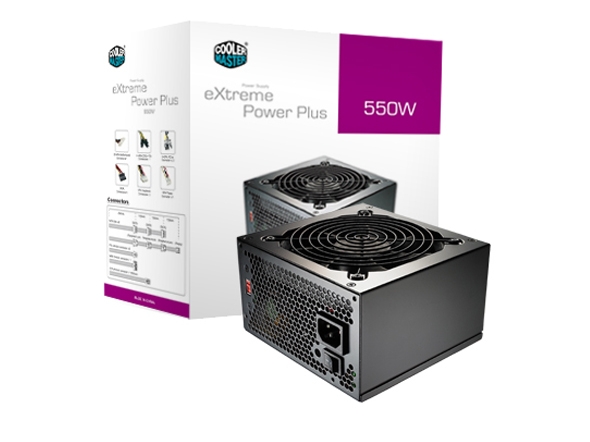

Extreme series packs a powerful punch by delivering stable streams of power through dual +12v outputs. Our Extreme power supplies provides over 70% efficiency at typical loading and meet Energy Star and Blue Angel requirements. With a life-time of 100,000 hours and protection for OVP/OCP/OPP/SCP, these power units are made to last.
Features
Compliance with the newest Intel standard ATX 12V V 2.3
Support dual +12V and+12V outputs for higher power usage
Green power design to meet energy star and blue angel requirements
More than 70% efficiency at typical load operation
Higher reliability (MTBF > 100,000 hours)
OVP / OPP / SCP
Specifications
Model
RS-550-PCAR-E3
Type
Intel Form Factor ATX12V V2.3
Dimension (W / H / D)
150 x 86 x 140 mm
Input Voltage
110 ~ 115V / 220 ~ 230V
Input Current
8A@115Vac / 6.3A@230Vac
Input Frequency Range
47 ~ 63Hz
Power Good Signal
100 ~ 500ms
Hold Up Time
>17ms
Efficiency
70% Typically
MTBF
>100,000 Hours
Protection
OVP / OPP / SCP
Operation Temperature
5~40°C (Nominal Input Voltage)
Regulatory
Nemko / TUV / UL / CE / BSMI / FCC / GOST / C-tick
Fan
120mm fan
Connector
M/B 20+4Pin x1
CPU 4+4Pin x1
PCI-E 6+2Pin x2
Peripheral 4Pin x3
SATA x6
Floppy 4Pin x1

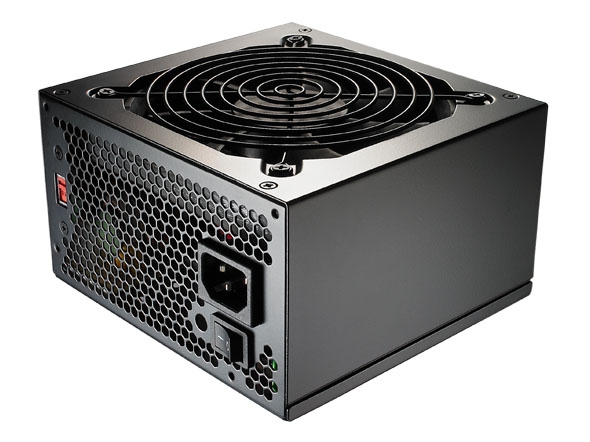

Extreme series packs a powerful punch by delivering stable streams of power through dual +12v outputs. Our Extreme power supplies provides over 70% efficiency at typical loading and meet Energy Star and Blue Angel requirements. With a life-time of 100,000 hours and protection for OVP/OCP/OPP/SCP, these power units are made to last.
Features
Compliance with the newest Intel standard ATX 12V V 2.3
Support dual +12V and+12V outputs for higher power usage
Green power design to meet energy star and blue angel requirements
More than 70% efficiency at typical load operation
Higher reliability (MTBF > 100,000 hours)
OVP / OPP / SCP
Specifications
Model
RS-600-PCAR-E3
Type
Intel Form Factor ATX12V V2.3
Dimension (W / H / D)
150 x 86 x 140 mm
Input Voltage
110 ~ 115V / 220 ~ 230V
Input Current
10A@115Vac / 6.3A@230Vac
Input Frequency Range
47 ~ 63Hz
Power Good Signal
100 ~ 500ms
Hold Up Time
>17ms
Efficiency
70% Typically
MTBF
>100,000 Hours
Protection
OVP / OPP / SCP
Operation Temperature
5~40°C (Nominal Input Voltage)
Regulatory
Nemko / TUV / UL / CE / BSMI / FCC / GOST / C-tick
Fan
120mm fan
Connector
M/B 20+4Pin x1
CPU 4+4Pin x1
PCI-E 6+2Pin x2
Peripheral 4Pin x3
SATA x6
Floppy 4Pin x1
