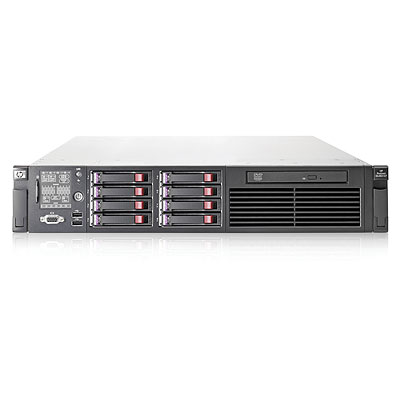

HP DL180G6 X5650 2x4GB 8LF - Processor: Intel® Xeon® 6-Core Processor X5650 (2.66 GHz, 12MB L3 Cache, 80W) - Cache Memory: 8MB shared L3 cache - Memory: 8GB (2 x 4GB) PC3-10600R-9 (RDIMM)
NOTE: Total 12 DIMM slots - Network Controller: HP NC362i Integrated Dual Port Gigabit Server Adapter - Storage Controller: HP Smart Array P410/256MB BBWC Controller (RAID 0/1/1+0/5/5+0) - Hard Drive: None ship standard (3.5") - Internal Storage
+ 16.0TB (8 x 2TB Hot Plug 3.5" SATA hard drives), Maximum
+ 16.0TB (8 x 2TB Hot Plug 3.5" SAS hard drives), Maximum - Optical Drive: HP Slim 12.7mm SATA DVDRW - Power Supply: 460W common slot, high efficiency power supply - Form Factor: Rack (2U)
Processor
Processor family
Intel® Xeon® 5500 series
Intel® Xeon® 5600 series
Number of processors
1 or 2
Processor core available
6 or 4 or 2
Memory
Maximum memory
192 GB
Memory slots
12 DIMM slots
Memory type
PC3-10600E DDR3
I/O
Expansion slots
4
Network Controller
(1) 1GbE NC362i 2 Ports
Storage
Maximum drive bays
(14) LFF SAS/SATA or
(25) SFF SAS/SATA
Up to 25 SFF with a Smart Array controller
Supported drives
Hot plug 3.5-inch SAS
Hot plug 3.5-inch SATA
Hot plug 2.5-inch SAS
Hot plug 2.5-inch SATA
HP DL180G6 E5645 2x4GB 8LF - Processor: Intel® Xeon® 6-Core Processor E5645 (2.40 GHz, 12MB L3 Cache, 80W) - Cache Memory: 8MB shared L3 cache - Memory: 8GB (2 x 4GB) PC3-10600R-9 (RDIMM)
NOTE: Total 12 DIMM slots - Network Controller: HP NC362i Integrated Dual Port Gigabit Server Adapter - Storage Controller: HP Smart Array P410/256MB BBWC Controller (RAID 0/1/1+0/5/5+0) - Hard Drive: None ship standard (3.5") - Internal Storage
+ 16.0TB (8 x 2TB Hot Plug 3.5" SATA hard drives), Maximum
+ 16.0TB (8 x 2TB Hot Plug 3.5" SAS hard drives), Maximum - Optical Drive: HP Slim 12.7mm SATA DVDRW - Power Supply: 460W common slot, high efficiency power supply - Form Factor: Rack (2U)
Processor
Processor family
Intel® Xeon® 5500 series
Intel® Xeon® 5600 series
Number of processors
1 or 2
Processor core available
6 or 4 or 2
Memory
Maximum memory
192 GB
Memory slots
12 DIMM slots
Memory type
PC3-10600E DDR3
I/O
Expansion slots
4
Network Controller
(1) 1GbE NC362i 2 Ports
Storage
Maximum drive bays
(14) LFF SAS/SATA or
(25) SFF SAS/SATA
Up to 25 SFF with a Smart Array controller
Supported drives
Hot plug 3.5-inch SAS
Hot plug 3.5-inch SATA
Hot plug 2.5-inch SAS
Hot plug 2.5-inch SATA
HP DL180G6 E5606 2x4GB 8LF - Processor: Intel® Xeon® Processor E5606 (2.13 GHz, 8MB L3 Cache, 80W) - Cache Memory: 8MB shared L3 cache - Memory: 8GB (2 x 4GB) PC3-10600R-9 (RDIMM)
NOTE: Total 12 DIMM slots - Network Controller: HP NC362i Integrated Dual Port Gigabit Server Adapter - Storage Controller: HP Smart Array P410/256MB BBWC Controller (RAID 0/1/1+0/5/5+0) - Hard Drive: None ship standard (3.5") - Internal Storage
+ 16.0TB (8 x 2TB Hot Plug 3.5" SATA hard drives), Maximum
+ 16.0TB (8 x 2TB Hot Plug 3.5" SAS hard drives), Maximum - Optical Drive: HP Slim 12.7mm SATA DVDRW - Power Supply: 460W common slot, high efficiency power supply - Form Factor: Rack (2U)
Processor
Processor family
Intel® Xeon® 5500 series
Intel® Xeon® 5600 series
Number of processors
1 or 2
Processor core available
6 or 4 or 2
Memory
Maximum memory
192 GB
Memory slots
12 DIMM slots
Memory type
PC3-10600E DDR3
I/O
Expansion slots
4
Network Controller
(1) 1GbE NC362i 2 Ports
Storage
Maximum drive bays
(14) LFF SAS/SATA or
(25) SFF SAS/SATA
Up to 25 SFF with a Smart Array controller
Supported drives
Hot plug 3.5-inch SAS
Hot plug 3.5-inch SATA
Hot plug 2.5-inch SAS
Hot plug 2.5-inch SATA
HP ProLiant ML110 G7 - Processor: Intel® Xeon® E3-1220 (3.10GHz/4-core/8MB/80W),1333, Turbo 1/2/3/4 Processor - Memory: 2GB PC3-10600E UDIMMs DDR3 - Hard Drives: 250GB 3G SATA 7.2K 3.5in ETY HDD - Internal Storage: Up to 4 large form factor Hot Plug drives - Network Controller: HP NC112i 1-Port Ethernet Server Adapter (x2) - Storage Controller: HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0) - Optical Drive: DVD-ROM - Power Supply: Autosensing 350-Watt PFC Power Supply, CE Mark Compliant - Form Factor: Tower
HP ProLiant ML110 G7 - Processor: Intel® Xeon® E3-1230 (3.20GHz/4-core/8MB/80W),1333, Turbo 1/2/3/4 Processor - Memory: 2GB PC3-10600E UDIMMs DDR3 - Hard Drives: 250GB 3G SATA 7.2K 3.5in ETY HDD - Internal Storage: Up to 4 large form factor Hot Plug drives - Network Controller: HP NC112i 1-Port Ethernet Server Adapter (x2) - Storage Controller: HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0) - Optical Drive: DVD-ROM - Power Supply: Autosensing 350-Watt PFC Power Supply, CE Mark Compliant - Form Factor: Tower
HP ProLiant ML110 G7 - Processor: Intel® Xeon® E3-1240 (3.30GHz/4-core/8MB/80W),1333, Turbo 1/2/3/4 Processor - Memory: 2GB PC3-10600E UDIMMs DDR3 - Hard Drives: 250GB 3G SATA 7.2K 3.5in ETY HDD - Internal Storage: Up to 4 large form factor Hot Plug drives - Network Controller: HP NC112i 1-Port Ethernet Server Adapter (x2) - Storage Controller: HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0) - Optical Drive: DVD-ROM - Power Supply: Autosensing 350-Watt PFC Power Supply, CE Mark Compliant - Form Factor: Tower

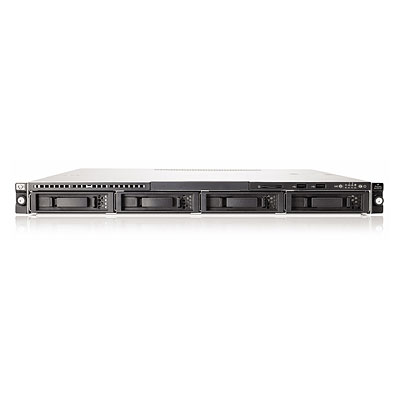

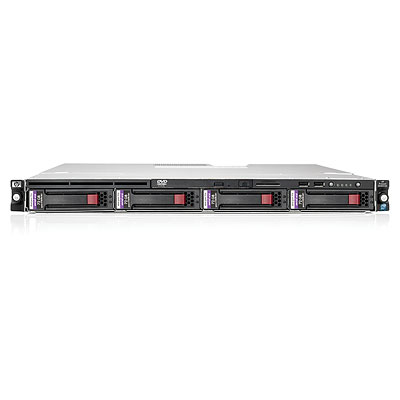

HP DL120 G7 - Processor: Intel® Xeon® E3-1220 (3.10GHz/4-core/8MB/80W),1333, Turbo 1/2/3/4 Processor - Memory: 2GB PC3-10600E UDIMMs DDR3 - Hard Drives: 250GB 3G SATA 7.2K 3.5in ETY HDD - Internal Storage: Up to 4 large form factor Hot Plug drives - Network Controller: HP NC112i 1-Port Ethernet Server Adapter (x2) - Storage Controller: HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0) - Optical Drive: Optional 9.5mm DVD-ROM, or DVD-RW Drive - Power Supply: Autosensing 400-Watt PFC Power Supply, CE Mark Compliant - Form Factor: 1U
HP DL120 G7 - Processor: Intel® Xeon® E3-1230 (3.20GHz/4-core/8MB/80W),1333, Turbo 1/2/3/4 Processor - Memory: 2GB PC3-10600E UDIMMs DDR3 - Hard Drives: 250GB 3G SATA 7.2K 3.5in ETY HDD - Internal Storage: Up to 4 large form factor Hot Plug drives - Network Controller: HP NC112i 1-Port Ethernet Server Adapter (x2) - Storage Controller: HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0) - Optical Drive: Optional 9.5mm DVD-ROM, or DVD-RW Drive - Power Supply: Autosensing 400-Watt PFC Power Supply, CE Mark Compliant - Form Factor: 1U
HP DL120 G7 - Processor: Intel® Xeon® E3-1240 (3.30GHz/4-core/8MB/80W),1333, Turbo 1/2/3/4 Processor - Memory: 2GB PC3-10600E UDIMMs DDR3 - Hard Drives: 250GB 3G SATA 7.2K 3.5in ETY HDD - Internal Storage: Up to 4 large form factor Hot Plug drives - Network Controller: HP NC112i 1-Port Ethernet Server Adapter (x2) - Storage Controller: HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0) - Optical Drive: Optional 9.5mm DVD-ROM, or DVD-RW Drive - Power Supply: Autosensing 400-Watt PFC Power Supply, CE Mark Compliant - Form Factor: 1U
HP DL120 G7 - Processor: Intel® Xeon® E3-1270 (3.40GHz/4-core/8MB/80W),1333, Turbo 1/2/3/4 Processor - Memory: 2GB PC3-10600E UDIMMs DDR3 - Hard Drives: 250GB 3G SATA 7.2K 3.5in ETY HDD - Internal Storage: Up to 4 large form factor Hot Plug drives - Network Controller: HP NC112i 1-Port Ethernet Server Adapter (x2) - Storage Controller: HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0) - Optical Drive: Optional 9.5mm DVD-ROM, or DVD-RW Drive - Power Supply: Autosensing 400-Watt PFC Power Supply, CE Mark Compliant - Form Factor: 1U
HP DL120 G7 - Processor: Intel® Xeon® E3-1280 (3.50GHz/4-core/8MB/80W),1333, Turbo 1/2/3/4 Processor - Memory: 2GB PC3-10600E UDIMMs DDR3 - Hard Drives: 250GB 3G SATA 7.2K 3.5in ETY HDD - Internal Storage: Up to 4 large form factor Hot Plug drives - Network Controller: HP NC112i 1-Port Ethernet Server Adapter (x2) - Storage Controller: HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0) - Optical Drive: Optional 9.5mm DVD-ROM, or DVD-RW Drive - Power Supply: Autosensing 400-Watt PFC Power Supply, CE Mark Compliant - Form Factor: 1U
HP DL180G6 E5620 2x4GB 8LF - Processor: Intel® Xeon® Processor E5620 (2.4 GHz, 12MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2) - Cache Memory: 8MB shared L3 cache - Memory: 8GB (2 x 4GB) PC3-10600R-9 (RDIMM)
NOTE: Total 12 DIMM slots - Network Controller: HP NC362i Integrated Dual Port Gigabit Server Adapter - Storage Controller: HP Smart Array P410/256MB BBWC Controller (RAID 0/1/1+0/5/5+0) - Hard Drive: None ship standard (3.5") - Internal Storage
+ 16.0TB (8 x 2TB Hot Plug 3.5" SATA hard drives), Maximum
+ 16.0TB (8 x 2TB Hot Plug 3.5" SAS hard drives), Maximum - Optical Drive: HP Slim 12.7mm SATA DVDRW - Power Supply: 460W common slot, high efficiency power supply - Form Factor: Rack (2U)
Processor
Processor family
Intel® Xeon® 5500 series
Intel® Xeon® 5600 series
Number of processors
1 or 2
Processor core available
6 or 4 or 2
Memory
Maximum memory
192 GB
Memory slots
12 DIMM slots
Memory type
PC3-10600E DDR3
I/O
Expansion slots
4
Network Controller
(1) 1GbE NC362i 2 Ports
Storage
Maximum drive bays
(14) LFF SAS/SATA or
(25) SFF SAS/SATA
Up to 25 SFF with a Smart Array controller
Supported drives
Hot plug 3.5-inch SAS
Hot plug 3.5-inch SATA
Hot plug 2.5-inch SAS
Hot plug 2.5-inch SATA
